Models

The Models page is where you register and serve the LLM endpoints your agents call. Click + Deploy model at the top of the page to open the deploy flow: first a source picker, then a per-source form, then the model’s detail page where you configure and start it.

The four sources

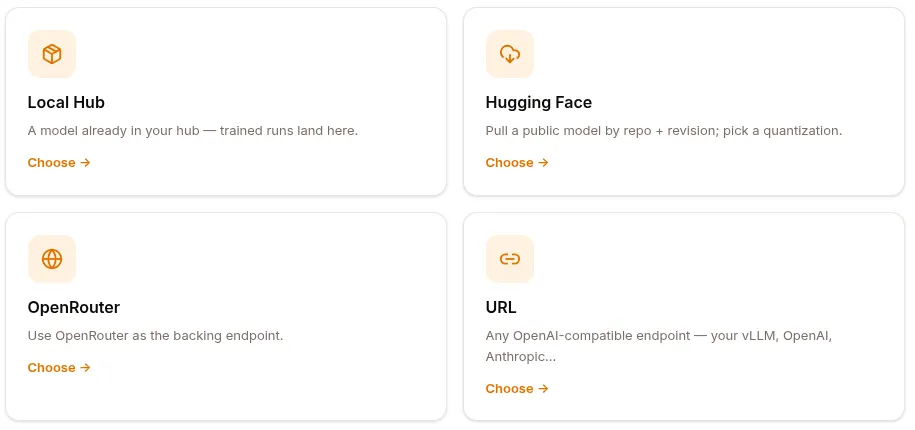

Deploying a model: local hub, Hugging Face, OpenRouter, or any OpenAI-compatible URL

The deploy flow opens on “Where is the model coming from?” — four cards:

Source	What it is	When to use
Local Hub	A model already in your tenant’s Hub	A model you trained (see Local Hub)
Hugging Face	Pull a public model from HF Hub by repo + revision	Public bases, quantized variants
OpenRouter	Use OpenRouter as the backing endpoint	Mix-and-match commercial models through one key
URL	Any OpenAI-compatible endpoint	Your own vLLM server, Anthropic, OpenAI direct, etc.

The split that matters: Local Hub and Hugging Face are served models — Surogate provisions GPUs and runs an inference server (vLLM / llama.cpp) for them, so they have a start/stop lifecycle. OpenRouter and URL are proxy models — Surogate just forwards to an endpoint someone else runs, so there’s no GPU, no CONFIG compute step, and they’re usable the moment you save.

Every form ends with a Display name (shown in the models list and to your agents; defaults to the last path segment of what you picked) and a Deploy → button. The back arrow returns to the source picker; Cancel returns to the models overview.

Local Hub

Serve a model that already lives in your hub. This is where a trained model reaches Models: a finished run is never added here by itself. On the run’s page, Publish to Hub (for a LoRA run, also Merge or Promote it, see Header actions), then add it here.

Field	Required	Notes
Model	yes	Dropdown of the model-type repos in your hub. Empty state: “No models in your hub yet.”
Revision	—	A commit or tag in that repo. The dropdown groups Branches and Tags (each shows its short commit); defaults to the repo’s default branch.
Display name	—	e.g. support-sft-001.

Registered with source local_hub and a hub_ref of repo@revision.

Hugging Face

The Hugging Face source: repository, revision and the display name agents will see

Pull a public base or fine-tune from the HF Hub.

Field	Required	Notes
Repository	yes	Type ≥3 characters to search HF, or paste a repo id directly (owner/name, e.g. Qwen/Qwen2.5-Coder-7B).
Revision	—	Branch, tag, or commit — the dropdown lists the repo’s refs (grouped Branches / Tags), defaulting to main.
Quantization	—	Segmented control: fp16 · int8 · int4 · GGUF. Lower precision = less GPU memory, slightly lower quality.
Display name	—	e.g. qwen2.5-coder-7b.

Registered with source huggingface, the chosen quantization, and a revision in the serving config when it isn’t main.

OpenRouter

The OpenRouter source: the model id field autocompletes against the catalogue, with context sizes

Point at a model hosted by OpenRouter and use it as the backing endpoint.

Field	Required	Notes
Model id	yes	Type to filter OpenRouter’s catalog (shows each model’s context length) or paste an id — e.g. openai/gpt-4o, anthropic/claude-3.5-sonnet.
OpenRouter API key	yes	Picked from the Vault (see The key picker). Deploy stays off until you choose one.
Display name	—	e.g. gpt-4o (judge).

Registered with source openrouter, engine openrouter, and a reference to the Vault key you picked in the serving config. This is a proxy model: no GPU, no serving config.

URL

Point at any OpenAI-compatible endpoint you already run.

Field	Required	Notes
Endpoint URL	yes	Your vLLM, OpenAI, Anthropic, or any OpenAI-compatible server — e.g. https://expert-pool.your-cluster.svc:8000/v1.
Model name	—	Passed verbatim to the endpoint (e.g. expert-router).
API key	—	Optional. Picked from the Vault (see The key picker).
Context window	—	Tokens the model accepts, as a whole number. Agents compact their context against it. Blank uses 128K.
Display name	—	e.g. expert-pool.

Registered with source url, engine openai_compat, and the endpoint (plus a reference to the Vault key, if you picked one) in the serving config. Also a proxy model, usable immediately.

The key picker

On OpenRouter and URL models the API key is a dropdown of the keys in your project’s Vault, not a text box. The model stores only a reference to the key, never its value. The choices are:

• Select a key (OpenRouter) or No key (URL): none chosen.
• Each Vault key by name, with the agent that uses it when there is one. Keys that belong to a single agent’s own account aren’t offered.
• + New key…: opens a name and value; Save adds the key to the Vault and selects it.

A reference to a key that was removed later shows as (missing) until you pick another. The server also refuses a deploy or save that names a key not in the Vault. The same picker is on the Config tab of a proxy model, as API key, next to Context window, which you can change there later.

The model detail page

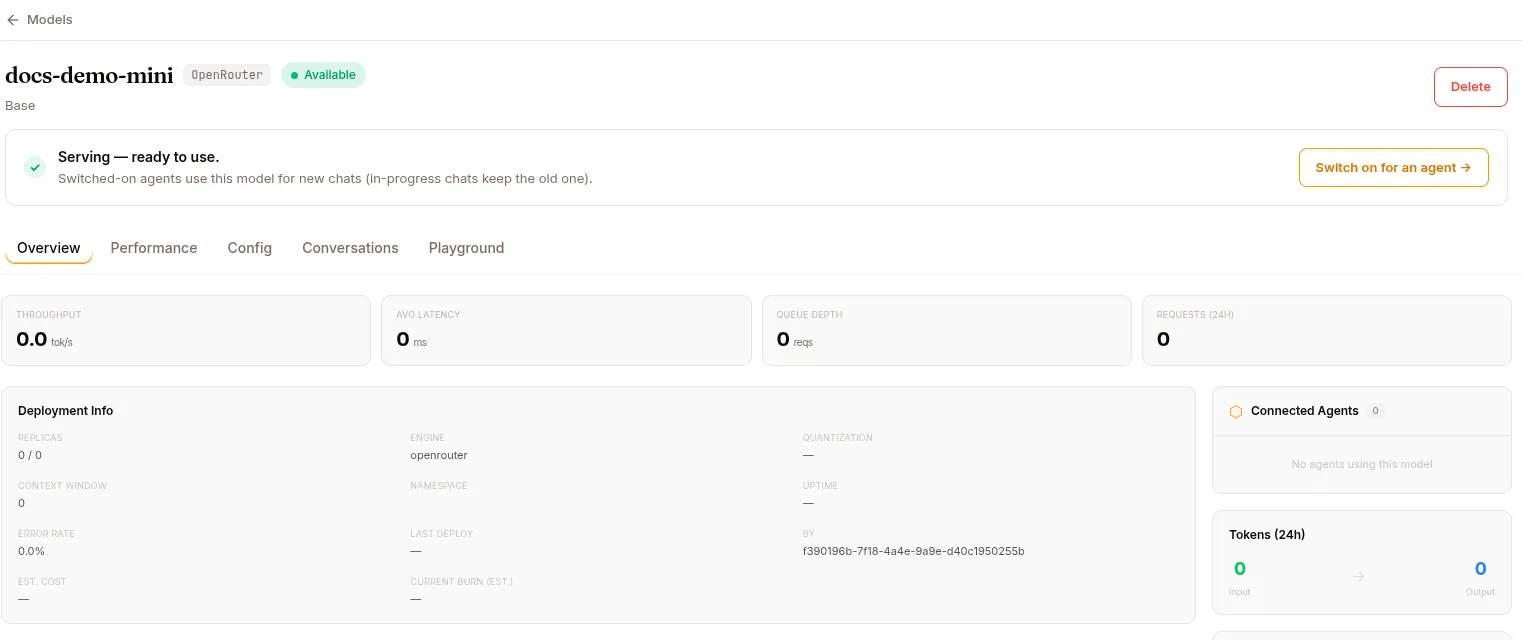

A served model: its status, throughput and latency counters, deployment info, connected agents and model card

Deploying drops you on the model’s detail page. The header shows the display name, a source badge, and a status pill: Creating (amber), Serving (green), Stopped, or Error; proxy models show a permanent Proxy pill. Next to the name, the pencil (Rename) edits it in place: press Enter or click away to save, Esc to cancel. Saving an empty name restores the old one. Renaming needs the editor role or higher: viewers can open Rename, but the save is refused. It changes only the display name. Action buttons live top-right: Stop / Start (or Restart after an error), View job (jumps to the serving job in the workload queue), and Delete. When a served model is up, a green “Serving — ready to use” banner offers to switch it on for an agent.

Up to six tabs:

Overview

• KPIs: Throughput (tok/s), Avg Latency (ms), Queue Depth, Requests (24h), each with a sparkline.
• GPU Resources (served models, while running): GPU-utilization and VRAM gauges, plus GPU type/count, VRAM used/total, tensor-parallel size, batch size. Shows “no GPU allocated” when stopped.
• Deployment Info: replicas (current / desired), engine, quantization, context window, namespace, uptime, error rate, last deploy, deployed-by.
• Connected Agents, Tokens (24h) (input → output), and a Model Card (family, parameters, base, hub ref).

Performance

Period selector (Last hour / Last 24h / Last 30d) driving five KPIs — Tokens/sec, Avg Latency, Total Tokens, Requests, Success Rate — sparkline charts for throughput / latency / total tokens / requests, and a prompt-vs-completion token breakdown.

Config

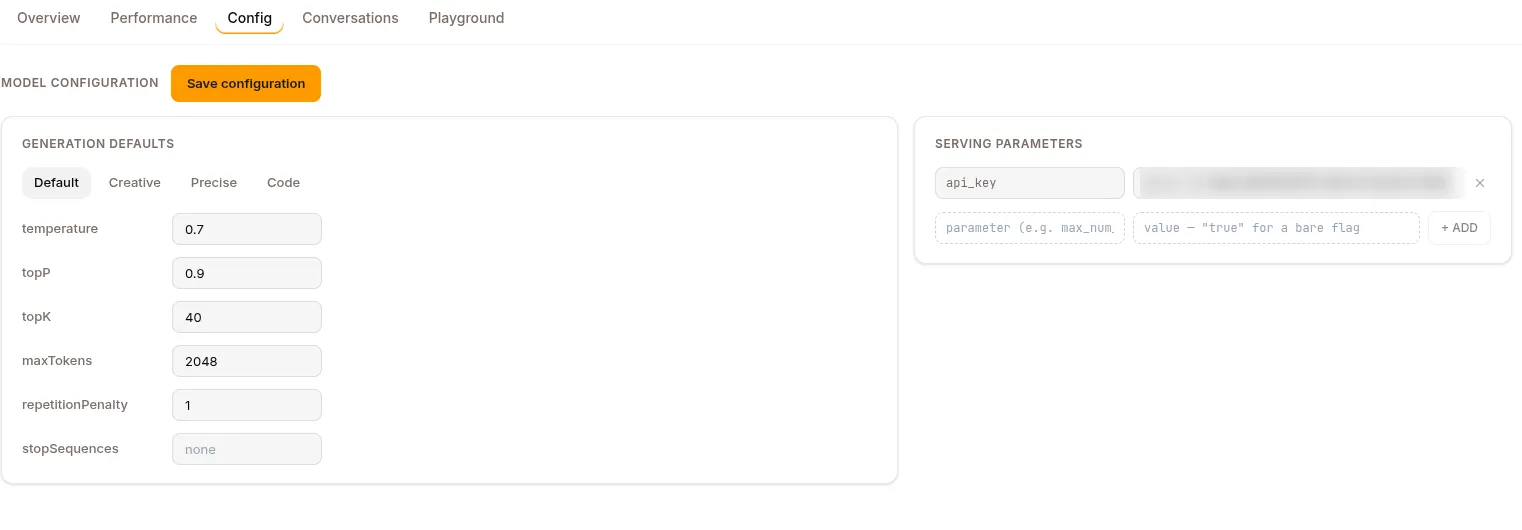

The Config tab: generation defaults with presets, and the serving parameters passed to the backend

The serving configuration. For served models it has three parts:

• Deployment configuration
  • Compute — pick a provider and instance offer (or a Modal GPU). kubernetes and ssh back-ends use pre-existing nodes and skip the offer picker.
  • Engine — vLLM or llama.cpp. Modal serving is vLLM-only.
• Generation defaults — presets (Default / Creative / Precise / Code) plus editable rows: temperature, topP, topK, maxTokens, repetitionPenalty, stopSequences.
• Serving parameters — engine flags as key/value rows. vLLM seeds max_model_len, tensor_parallel_size, gpu_memory_utilization, quantization, enforce_eager, attention_backend, reasoning_parser, tool_call_parser; llama.cpp seeds ctx_size, threads, reasoning_format. You can add arbitrary parameters — each is passed to the serving command as --kebab-cased-key. On Modal, an extra card exposes snapshot mode (CPU+GPU / CPU / off), scale-to-zero window, startup timeout, and max concurrent requests per replica.

Start requires only Engine and Compute; quantization can stay unset. The yellow “Required before serving” note names the same two. Settings lock while the model is serving or starting: Stop to edit.

Proxy models (OpenRouter / URL) have no compute or engine to configure — CONFIG only carries generation defaults and the endpoint/API-key serving fields, and it never locks.

Conversations

Sessions that used this model, filterable and searchable — useful for seeing the model against real production traffic.

Fine-tunes

Served models only. Lists the fine-tuned models derived from this base — each row shows its training run, success rate, and status — with a + NEW FINE-TUNE button to launch another training run from this base.

Playground

Send prompts to the model right from the detail page. Proxy models work immediately; a served model has to be running first (otherwise you get a “start to test” prompt).

Starting a model

The models list, filterable by source and status

Start is disabled until CONFIG is complete — for served models that means an engine plus a GPU (or a kubernetes/ssh/llama.cpp setup where the GPU is resolved at schedule time). Then:

1. Click Start and confirm.
2. The platform provisions compute on the selected backend — dstack (Kubernetes / cloud) or Modal.
3. The model is downloaded, loaded, and exposed at an endpoint.
4. Status moves creating → serving, usually 1–10 minutes (HF download + load can be slow, and it costs money while it runs).

The endpoint then becomes available to your agents (via the agent’s model selection) and to any skill that references it.

Stopping a model

Stop drops the model’s replicas to 0 and the endpoint stops responding. The model record is retained — Start again brings it back; cached model files mean it usually doesn’t re-download.

Scaling replicas

Studio has no replica control. The REST API stores a replica count: POST /api/models/{id}/scale with a replicas count (editor role or higher). It is refused (400) unless the model is serving, and it does not resize the running deployment: the new count takes effect the next time the model is stopped and started.

Connecting a model to an agent

Open the agent → CONFIG → Model section and pick the model from the dropdown.

• New sessions use the new model.
• In-progress sessions keep their old model (session-start freeze).

The “Switch on for an agent →” button on a serving model’s banner takes you straight there.

Models for experts

A served model can also back an expert — a skill (type: expert) the base LLM delegates to when a request matches its trigger. The expert runs its own mini agent loop on this model and hands the answer back, so you can drop an LLM that’s specialised in one thing (a fine-tuned coder, a domain classifier) inside an ordinary agent. The expert references the model + its endpoint; it can’t be activated until the model is actually serving. See Skills & Experts for the expert setup.

BYO LLM

If you run your own provider end-to-end (not Surogate-served models), enable BYO LLM in Settings → Billing. Your agents route LLM calls through your own provider and you pay them directly; Surogate charges only for platform usage. See BYO LLM.

REST API

All routes are mounted at /api/models.

Method	Endpoint	Purpose
GET	/api/models	List models (filters: project_id, status, search, limit ≤ 200)
GET	/api/models/{id}	Model detail
POST	/api/models	Register a model (any source)
PATCH	/api/models/{id}	Update serving / generation config
POST	/api/models/{id}/start	Provision and serve
POST	/api/models/{id}/stop	Drop replicas
POST	/api/models/{id}/restart	Restart a serving model
POST	/api/models/{id}/scale	Store the replica count for the next start
GET	/api/models/{id}/in-use	Active + historical references to the model
DELETE	/api/models/{id}	Unregister (409 if anything still references it)
GET	/api/models/artifacts	List indexed model artifacts (filters incl. project_id, hub_repo, hub_ref, source_kind, limit ≤ 500)
GET	/api/models/artifacts/{artifact_id}/lineage	Artifact plus its parents/children
POST	/api/models/artifacts/{adapter_id}/merge	Merge an adapter into its base and publish to the hub
POST	/api/models/artifacts/{adapter_id}/promote	Promote train-time-merged weights into their own repo

What’s next

Skills for how to reference a served or fine-tuned model from a skill. Training for producing a fine-tuned model of your own.
